AI-SONIC S2-A60.4 Automobilinis stiprintuvas

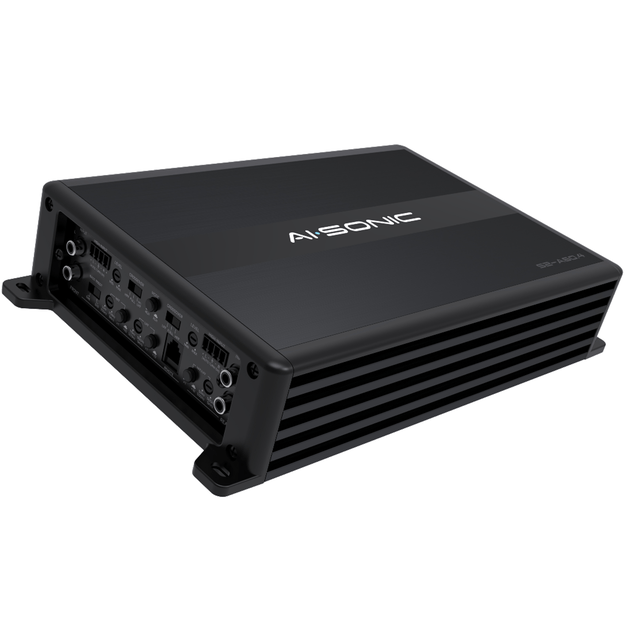

The Ai-Sonic S2-A60.4 is a 4-channel amplifier in the AB class for users who want to experience pure sound quality. The amplifier offers more power than specified in the technical data. The finish includes dark covers and the profile is made of brushed black aluminum. When the amplifier is switched on, the Ai-Sonic logo lights up! The Ai-Sonic S2-A60.4 includes an optional a remote control that has three different indicator LEDs (protection, power and clipping). The bass level control is available separately.
Features :
Ai-Sonic S2-A60.4 4-channel amplifier
Power voltage 10 - 16V
Effective power (2 Ohm) at 12V: 4x105 Watt RMS
Effective power (4 Ohm) at 12V: 4x70 Watt RMS
Bridged power (4 Ohm) at 12V: 2x210 Watt RMS
THD < 0,02% 4ohm < 0.04 % 2 Ohm
Frequency range 10hz-40khz
S/N ratio (A-weighted) > 105dB
Channel separation > 45dB
Input sensitivity 0.5-6 V
Input impedance 13kOhm

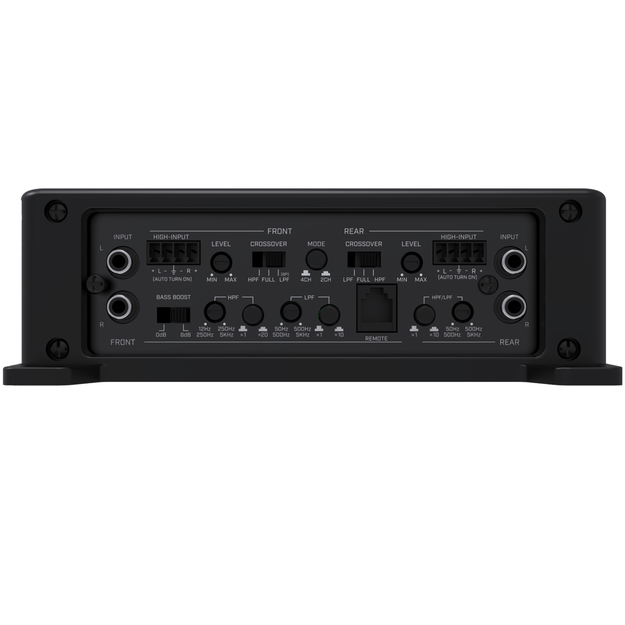

Low-pass filter settings
x1: 50 Hz - 500 Hz
x10: 500 Hz - 5 kHz
High-pass filter settings
x1: 12Hz - 250 Hz (front)
x2 : 250Hz - 5 kHz (front)
x1 : 50Hz - 500 Hz (rear)
x10 : 500Hz - 5 kHz (rear)
Bandpass (front) 12 Hz - 5 kHz
Crossover slope 12dB/oct.
Bass boost 0/6 dB (@45 Hz)

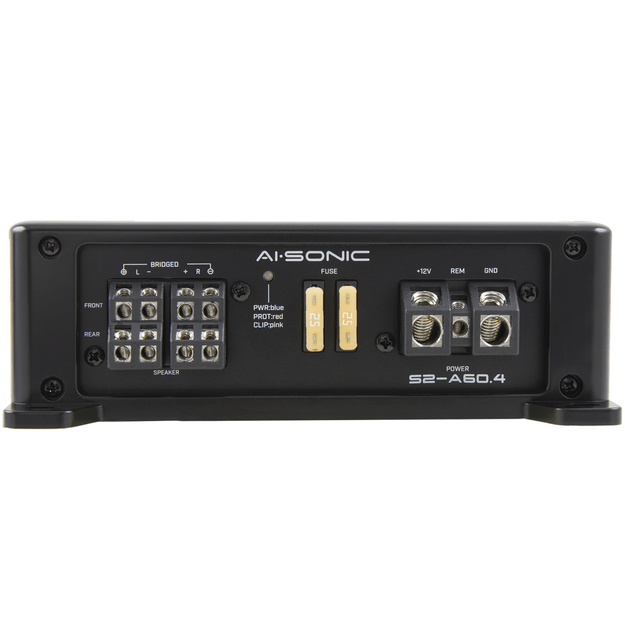

Mains fuse 2x25 A
Dimensions
B: 183mm
H: 60mm
L: 304mm
Garantija 2 metai.
