Country of origin: China
Lockable: Padlock not included
Housing material: Steel
Product colour: Black

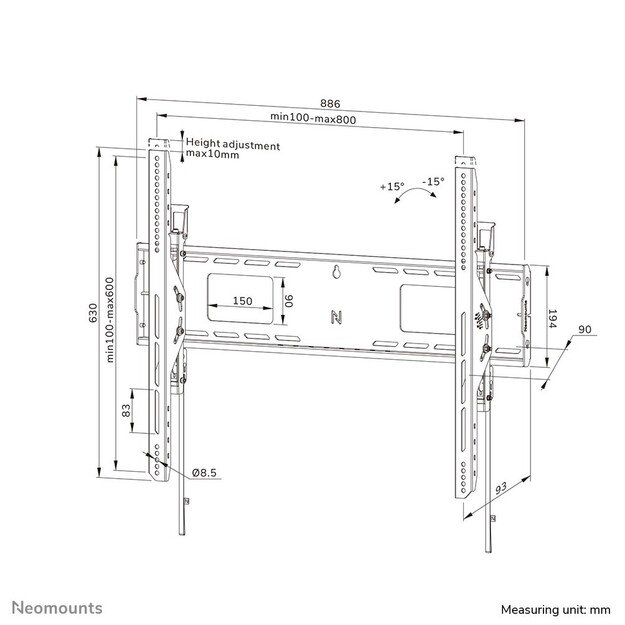

Height: 684 mm
Depth: 93 mm
Depth (max): 9.3 cm
Width: 886 mm
Weight: 6.8 kg
Package height: 209 mm
Package width: 928 mm
Package depth: 102 mm
Package weight: 8.4 kg

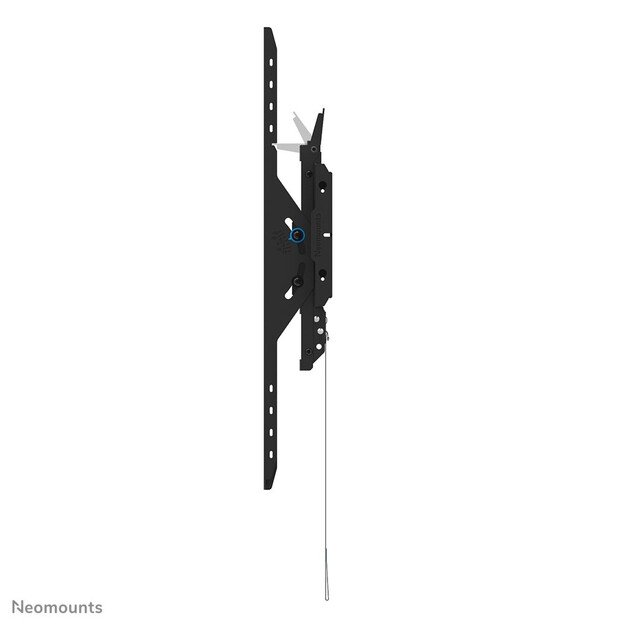

Tilt adjustment: Yes

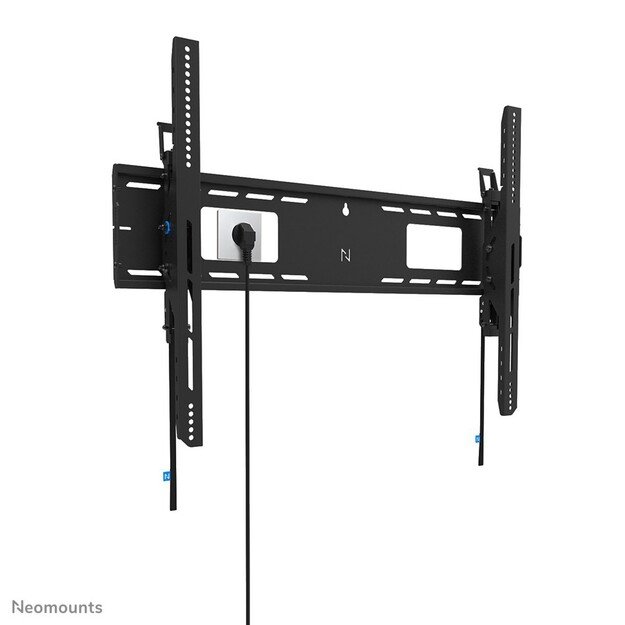

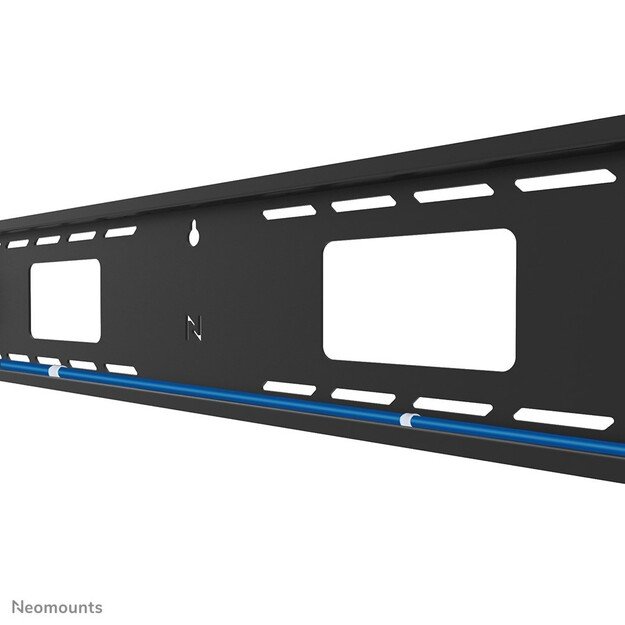

Cable management: Yes
Distance to the wall (max): 9.3 cm

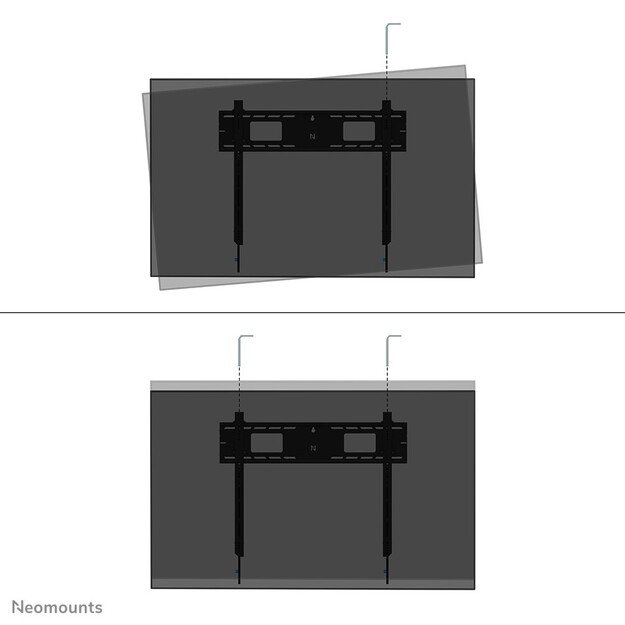

Height adjustment range: 0 - 10 mm
Height adjustment: Yes

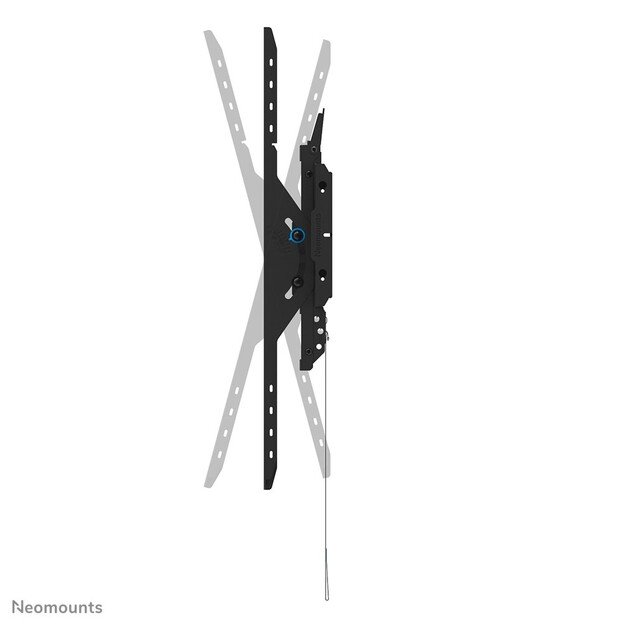

Tilt angle range: -15 - 15°
Harmonized System (HS) code: 7326909890
Master (outer) case length: 227 mm
Master (outer) case height: 324 mm
Master (outer) case width: 946 mm
Products per master (outer) case: 3 pc(s)
Products per pallet (EU): 39 pc(s)
Master (outer) case net weight: 20.4 kg
Master (outer) case gross weight: 26.3 kg
Maximum VESA mount: 800 x 600 mm
Minimum screen size: 109.2 cm (43 )
Minimum VESA mount: 100 x 100 mm
Mounting type: Wall
Maximum weight capacity: 125 kg
Number of displays supported: 1
Maximum weight capacity (per display): 125 kg
Panel mounting interface: 200 x 300 mm, 200 x 100 mm, 200 x 200 mm, 400 x 300 mm, 800 x 500, 700 x 400, 600 x 300, 600 x 500, 200 x 400 mm, 400 x 600, 300 x 100, 800 x 200, 150 x 200 mm, 100 x 150, 100 x 100 mm, 200 x 150, 600 x 600, 300 x 300 mm, 800 x 400 mm, 500 x 400, 400 x 200 mm, 600 x 400 mm, 400 x 400 mm, 300 x 200 mm, 350 x 350, 600 x 200, 800 x 600 mm, 100 x 200 mm, 680 x 300, 500 x 500 mm, 120 x 120, 800 x 450, 440 x 400
Maximum screen size: 2.49 m (98 )
