Country of origin: China

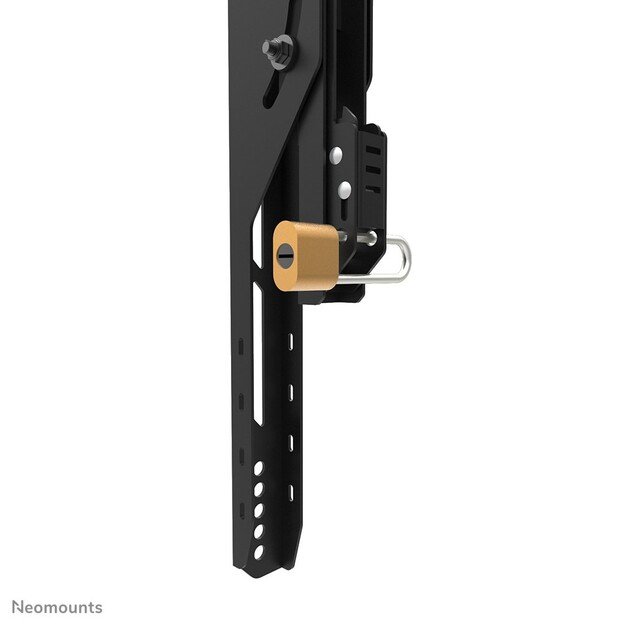

Lockable: Padlock not included
Product colour: Black
Housing material: Steel
Weight: 6.8 kg

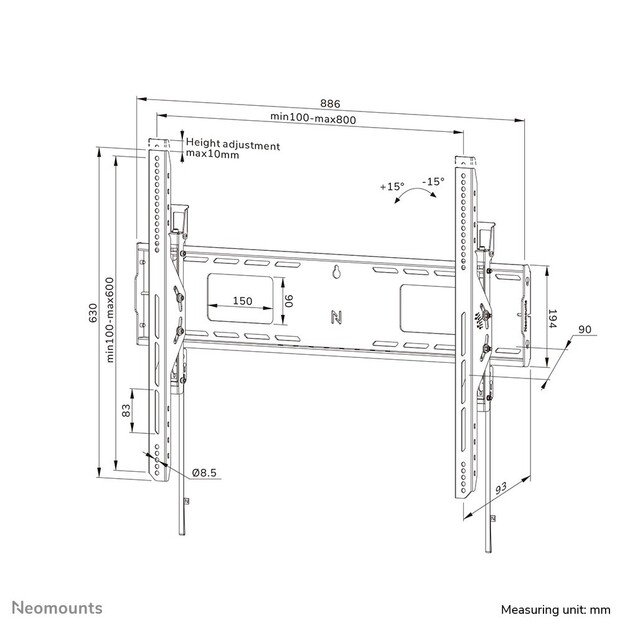

Width: 886 mm
Height: 684 mm
Depth (max): 9.3 cm
Depth: 93 mm
Package depth: 102 mm
Package height: 209 mm
Package width: 928 mm
Package weight: 8.4 kg

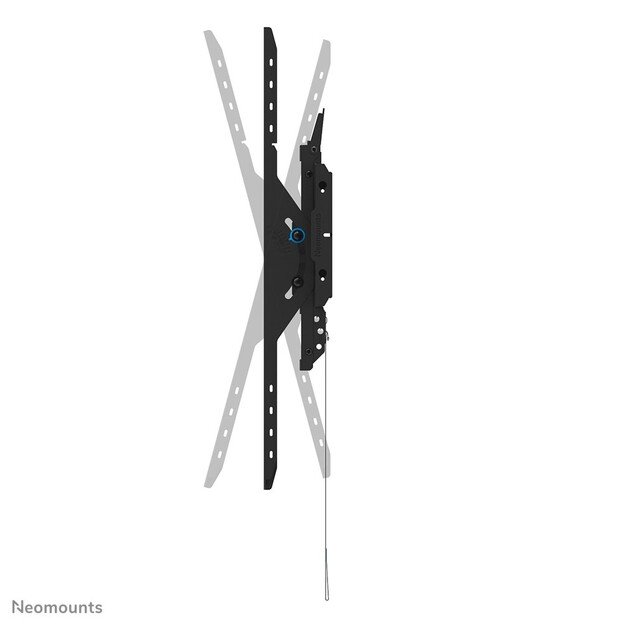

Tilt angle range: -15 - 15°
Distance to the wall (max): 9.3 cm

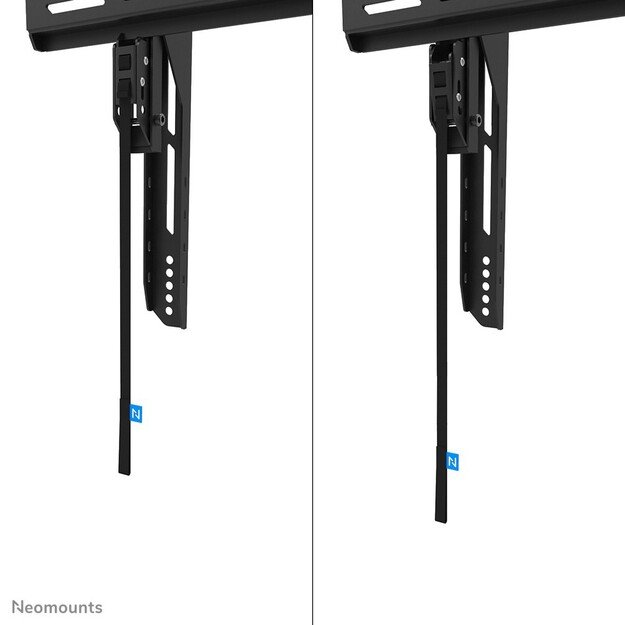

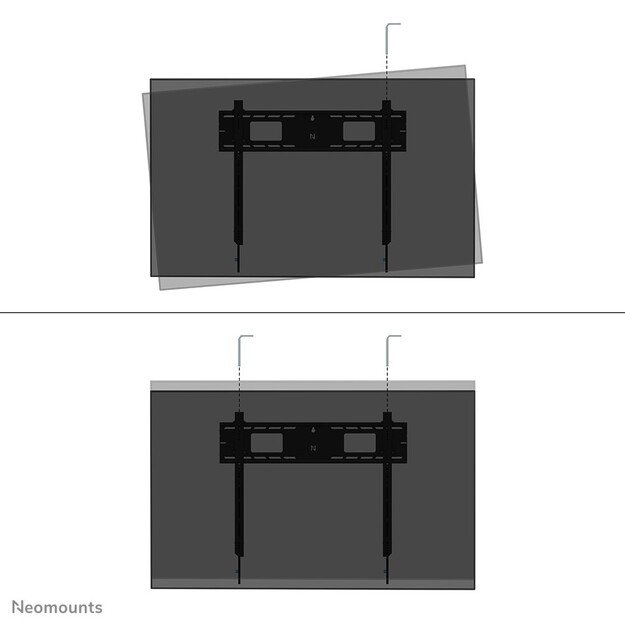

Height adjustment range: 0 - 10 mm
Height adjustment: Yes
Tilt adjustment: Yes

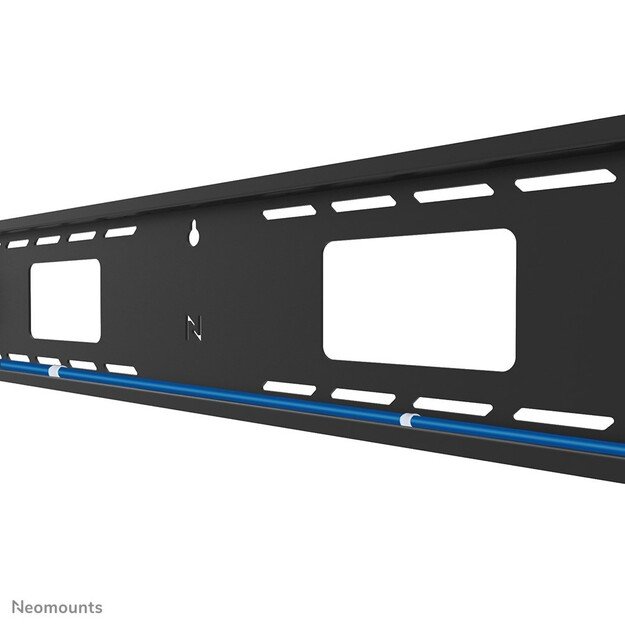

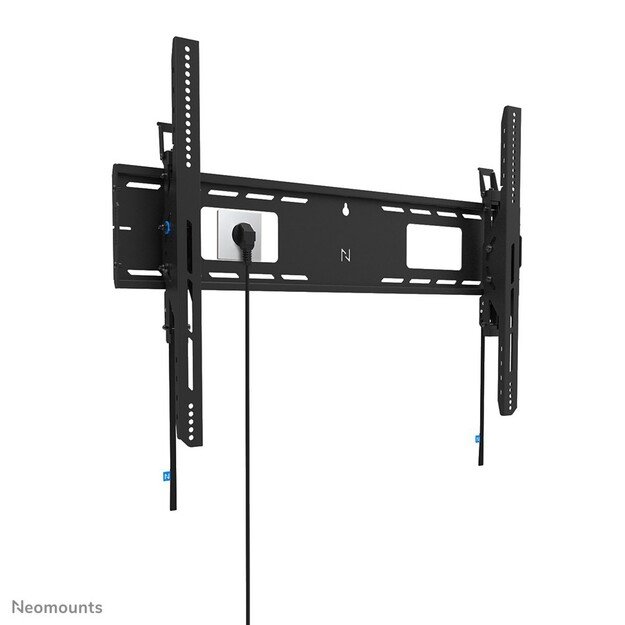

Cable management: Yes
Products per pallet (EU): 39 pc(s)
Master (outer) case net weight: 20.4 kg
Harmonized System (HS) code: 7326909890
Master (outer) case gross weight: 26.3 kg
Master (outer) case height: 324 mm
Products per master (outer) case: 3 pc(s)
Master (outer) case width: 946 mm
Master (outer) case length: 227 mm
Panel mounting interface: 600 x 300, 100 x 150, 100 x 200, 200 x 100, 200 x 200, 800 x 500, 700 x 400, 400 x 200, 100 x 100 mm, 200 x 150, 600 x 600, 300 x 300, 800 x 400, 500 x 400, 600 x 400, 400 x 400, 300 x 200, 350 x 350, 400 x 300, 800 x 450, 440 x 400, 200 x 300, 120 x 120, 600 x 500, 200 x 400, 400 x 600, 300 x 100, 800 x 200, 150 x 200 mm, 600 x 200, 800 x 600, 680 x 300, 500 x 500
Maximum screen size: 2.49 m (98 )
Maximum weight capacity: 125 kg
Maximum weight capacity (per display): 125 kg
Mounting type: Wall
Minimum VESA mount: 100 x 100 mm
Number of displays supported: 1
Minimum screen size: 139.7 cm (55 )
Maximum VESA mount: 800 x 600 mm
