Designed to inspire
The Onkyo Muse Series fuses 80 Years of Japanese audio precision into an all-in-one 2-channel system - boasting the latest streaming services to provide a universe of music and entertainment.
The Onkyo Muse Series fuses 80 Years of Japanese audio precision into an all-in-one 2-channel system - boasting the latest streaming services to provide a universe of music and entertainment.

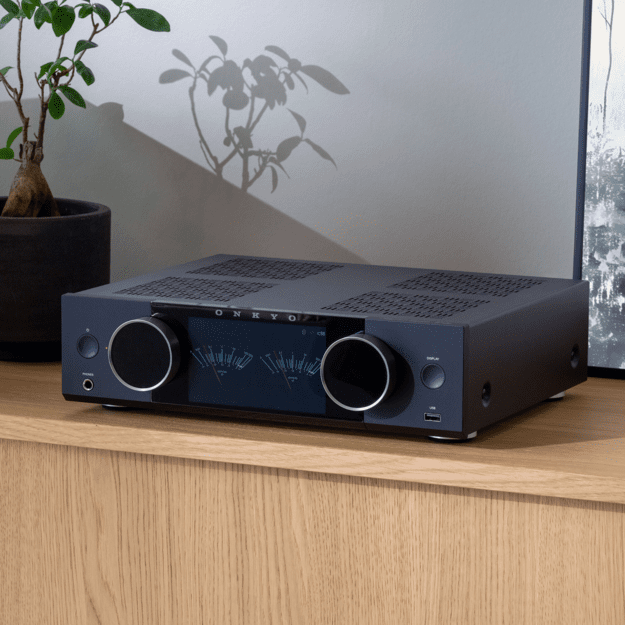

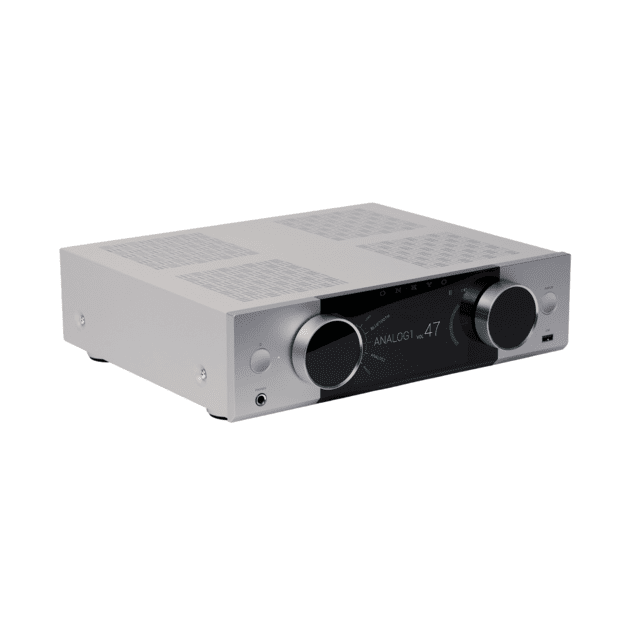

The Onkyo Muse Series simplifies an intricate, multifaceted audio system into an approachable, compact design with a beautiful LCD screen and enhanced interface - while maintaining our passion for premium acoustic performance.

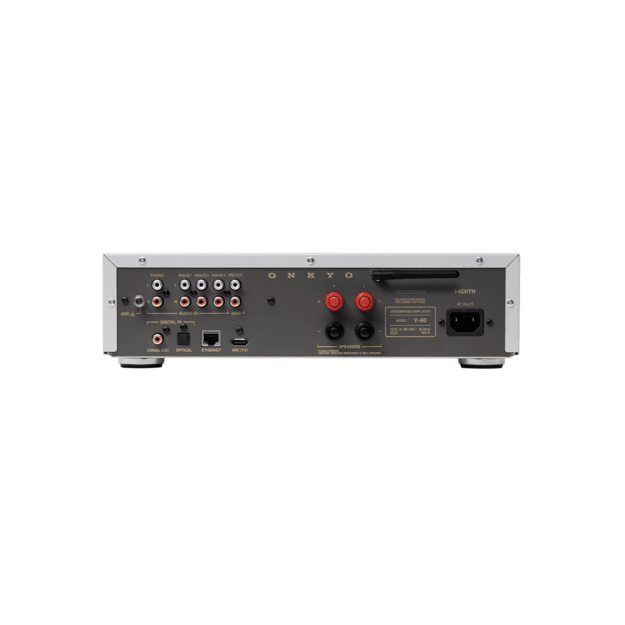

Features and connectivity
Custom App Onkyo Control
Analog Audio Input RCA(Unbalanced) x 3pair
Digital Audio Input HDMI ARC
COAX x 1
Optical x 1
USB-A (Storage playback) x 1
Phono Input 1 pair (MM)
Audio Pre Output RCA(Unbalanced) x 1pair
Headphone Output 1/4”(6.3mm) Jack x 1
Network connectivity Wi-Fi
Ethernet Terminal(10BASE-T/100BASE-TX)
Bluetooth SBC, AAC
Network service Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, Chromecast
Audio performance
Output power (U.S.A.) 75w (FTC, 8Ω, 20Hz - 20kHz, THD 0.08%, 2ch driven)/ 150w(4Ω, 1kHz, THD 0.7%, 2ch driven)
Output power (EMEA/APAC) 150w(4Ω, 1kHz, THD 0.7%, 2ch driven) / 75w(8Ω, 20Hz-20kHz, THD 0.08%, 2ch driven)
Amplifier channel 2ch
Pre Amplifier channel 2.0ch
Amplifier Type Class D
Frequency Response 20Hz~30kHz(+1/-3dB)
Tone control (Bass/ Treble) 100Hz ±10dB / 10kHz ±10dB
Speaker impedance 4-16Ω
General
Product Dimensions (W x H x D) 350 x 99 x 337 (mm)
13.8 x 3.9 x 13.3 (inch)
Product Weight 4.4 kg (9.7lbs)
Package Dimensions(W x H x D) 465 x 225 x 405 (mm)
18.3 x 8.9 x 15.9 (inch)
Package Weight US:6.6 kg (14.6lbs) EMEA: 7.0kg (15.4lbs)
Standby Power Consumption Less than 0.4w(Standby)
Less than 1.8w(Network Standby)
Power Consumption 65W
AC Voltage AC 100-240V 50Hz/60Hz
