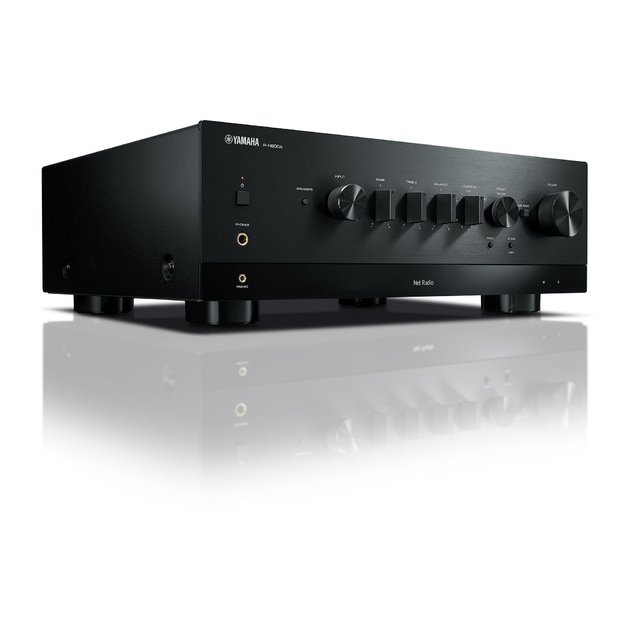

The R-N800A Network Receiver delivers full-fledged, comprehensive music enjoyment with modern Hi-Fi style. It includes our original YPAO™ sound field correction technology to create an ideal listening environment right in your living room. From streaming services to high-resolution sound sources, you can immerse yourself in a wide range of music sources with superb sound quality and yet a casual style.
The R-N800A is equipped with Yamaha s original MusicCast network system. Moreover, it is compatible with a variety of streaming services such as Amazon Music HD and Spotify, letting you fully enjoy exceptionally high-quality sound unique to today’s high-resolution and lossless sound sources, with complete fidelity. You can also use it to stream Apple Music with Airplay 2. And the MusicCast system lets you easily listen to music anywhere in your home by linking various MusicCast devices with just one app on your smart device.
* Music service availability varies by region and may change or be discontinued without notice.
From audio you’ve stored your PC or a network drive to vinyl records and TV—the R-N800A handles everything, giving you superior sound and drawing out the full sonic splendor inherent in all your entertainment.
| R-N800A | ||
|---|---|---|
| Specifications | ||
| Network section | File Format | MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, DSD |
| AirPlay | Yes | |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 140 / 170 / 220 / 290 W | |
| Frequency Response | 10 Hz-100 kHz 0±1.0 dB, 20-20 kHｚ0±0.5 (Pure Direct ON) | |
| Signal-to-Noise Ratio (CD) | 100 dB (Pure Direct ON) | |

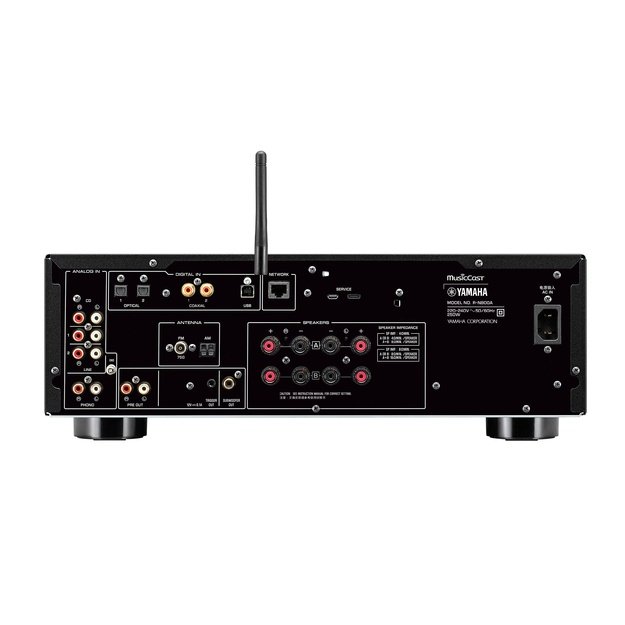

| Audio In / Out | Phono, CD, line1, line2 / Pre out, Subwoofer out | |
| Digital Input | Optical1, Optical2, Coaxial1, Coaxial2 | |
| USB Input | USB DAC (USB B-type) | |
| Subwoofer Out | Yes | |
| Control (Trigger) Out | Yes | |
| FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) | 3 µV (20.8 dBf) | |
| FM Signal-to-Noise Ratio (Mono/Stereo) | 69 dB / 68 dB | |
| Pure Direct | Yes | |
| ToP-ART | Yes | |
| Standby Power Consumption | 0.1 W (Network standby on/ Wi-Fi connection 1.8 W) | |
| Dimensions (W x H x D) | 435 x 151 x 395 (with antenna up: 435 x 232 x 395)+ 17-1/8 x 6 x 15-1/2 (with antenna up: 17-1/8 x 9-1/8 x 15-1/2 ) | |
| Weight | 11.4 kg 25.2 lbs | |
| Receiver / Integrated Amplifier | ||
| Network section | Wi-Fi | Yes |
| Bluetooth | Yes (SBC / AAC) | |
| Rated Output Power | [20 Hz-20 kHz 0.07 % THD] 100 W+100 W (8 ohms) 120 W + 120 W (6 ohms) | |
| HDMI(ARC) | No | |
| Phono Input | Yes | |
| Ethernet | Yes | |
| Headphone Out | Yes | |
