Quantity per pack: 1 pc(s)
Package net weight: 11.7 kg
Lockable: Not lockable
Housing material: Steel
Product colour: Black

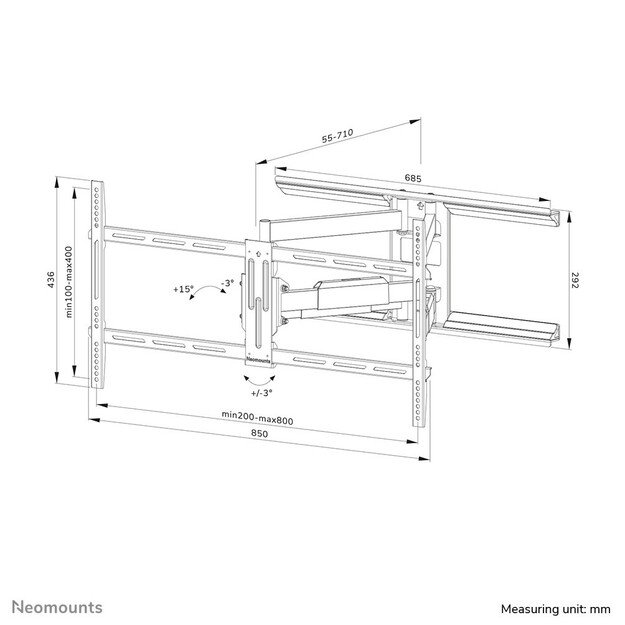

Width: 850 mm
Weight: 9.9 kg
Height: 436 mm
Depth: 55 mm
Depth (max): 5.5 cm
Package height: 65 mm
Package weight: 11.7 kg
Package width: 882 mm
Package depth: 340 mm

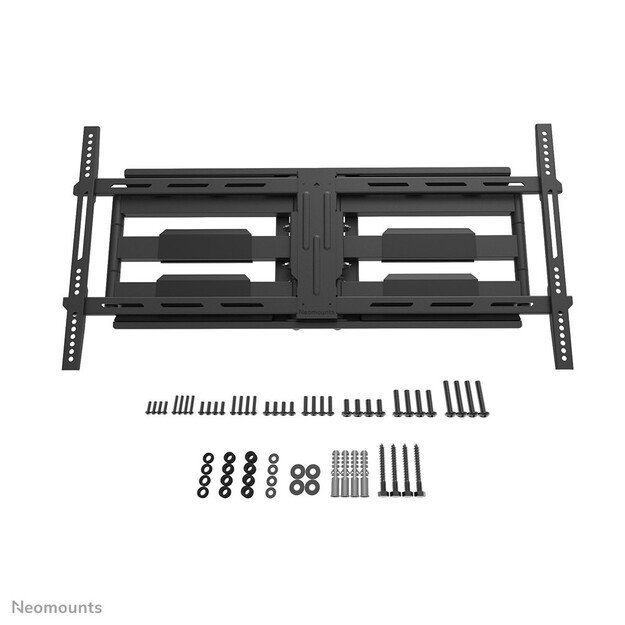

Mounting kit: Yes
Type: Full motion
Swivel angle range: 0 - 54°
Height adjustment: No
Pivot angle: -3 - 3°
Tilt adjustment: Yes
Tilt angle range: -3 - 15°
Angle of rotation: 6°
Swivelling: Yes

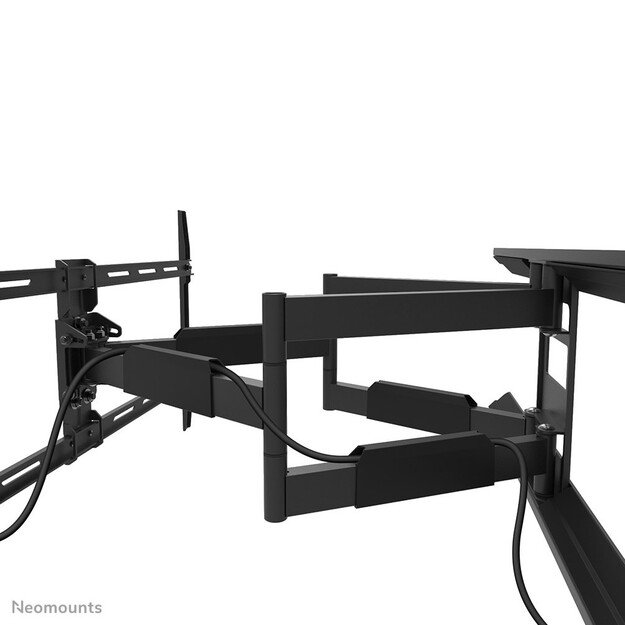

Cable management: Yes
Swivel angle: 54°
Distance to the wall (max): 71 cm
Distance to the wall (min): 5.5 cm
Rotating: Yes
Harmonized System (HS) code: 7326909890
Products per master (outer) case: 2 pc(s)
Master (outer) case gross weight: 24 kg
Products per pallet (EU): 40 pc(s)
Master (outer) case width: 902 mm
Master (outer) case net weight: 22.1 kg
Master (outer) case height: 360 mm
Master (outer) case length: 145 mm
Warnings: Regularly check the fixings and tighten screws as necessary to prevent the monitor/TV from falling., Do not exceed the maximum user weight recommended by the manufacturer., Ensure that the holder is mounted on the correct wall/desk according to the manufacturer s instructions.
Panel mounting interface: 600 x 400 mm, 200 x 100, 600 x 200, 680 x 300, 300 x 300 mm, 800 x 400 mm, 500 x 400, 200 x 400, 800 x 200, 600 x 300, 200 x 300, 400 x 400 mm, 300 x 200, 350 x 350, 440 x 400, 400 x 200 mm, 200 x 200 mm, 400 x 300, 200 x 150
Mounting type: Wall
Maximum screen size: 190.5 cm (75 )
Minimum screen size: 109.2 cm (43 )
Maximum weight capacity: 45 kg
Maximum VESA mount: 800 x 400 mm
Minimum VESA mount: 200 x 100 mm
Maximum weight capacity (per display): 45 kg
Number of displays supported: 1
