Quantity per pack: 1 pc(s)
Package net weight: 11.7 kg
Lockable: Not lockable
Product colour: Black
Housing material: Steel
Weight: 9.9 kg

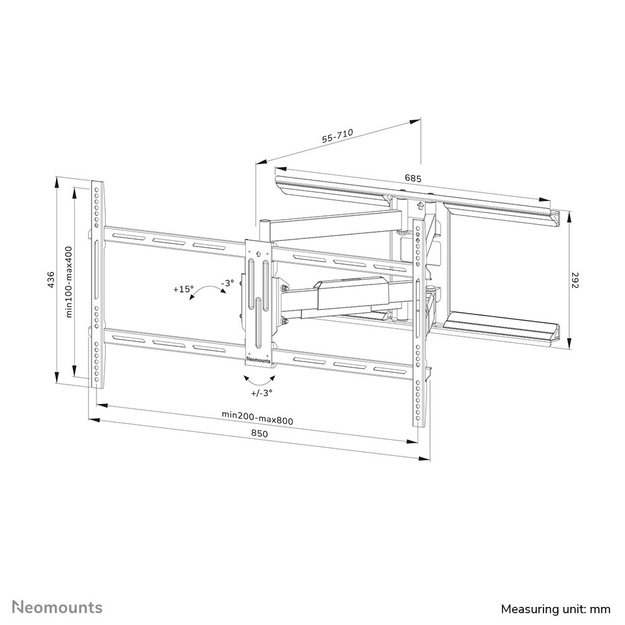

Depth: 55 mm
Depth (max): 5.5 cm
Width: 850 mm
Height: 436 mm
Package height: 65 mm
Package weight: 11.7 kg
Package width: 882 mm
Package depth: 340 mm

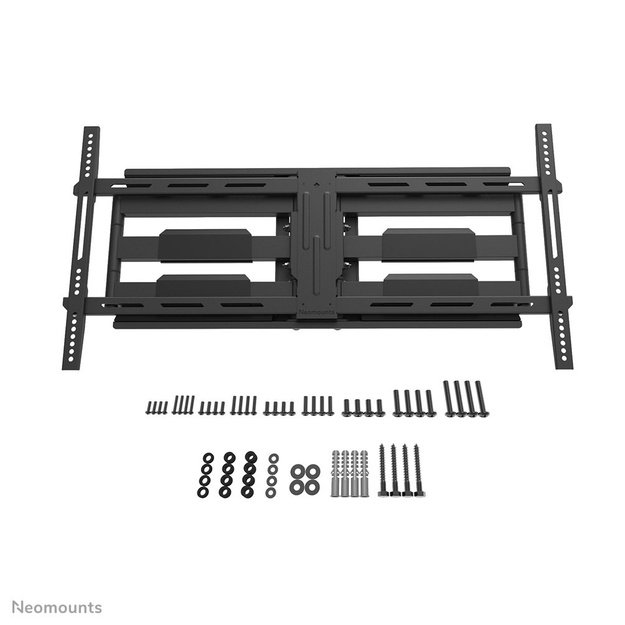

Mounting kit: Yes
Type: Full motion
Tilt angle range: -3 - 15°
Tilt adjustment: Yes
Angle of rotation: 6°
Distance to the wall (min): 5.5 cm
Swivelling: Yes
Height adjustment: No
Distance to the wall (max): 71 cm
Swivel angle range: 0 - 54°
Rotating: Yes
Pivot angle: -3 - 3°
Swivel angle: 54°

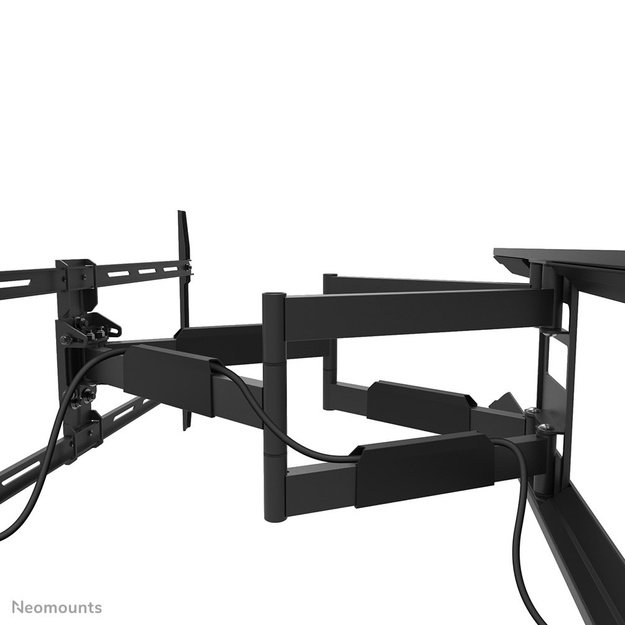

Cable management: Yes
Master (outer) case length: 145 mm
Products per master (outer) case: 2 pc(s)
Master (outer) case height: 360 mm
Products per pallet (EU): 40 pc(s)
Master (outer) case net weight: 22.1 kg
Master (outer) case width: 902 mm
Master (outer) case gross weight: 24 kg
Harmonized System (HS) code: 7326909890
Warnings: Do not exceed the maximum user weight recommended by the manufacturer., Ensure that the holder is mounted on the correct wall/desk according to the manufacturer s instructions., Regularly check the fixings and tighten screws as necessary to prevent the monitor/TV from falling.

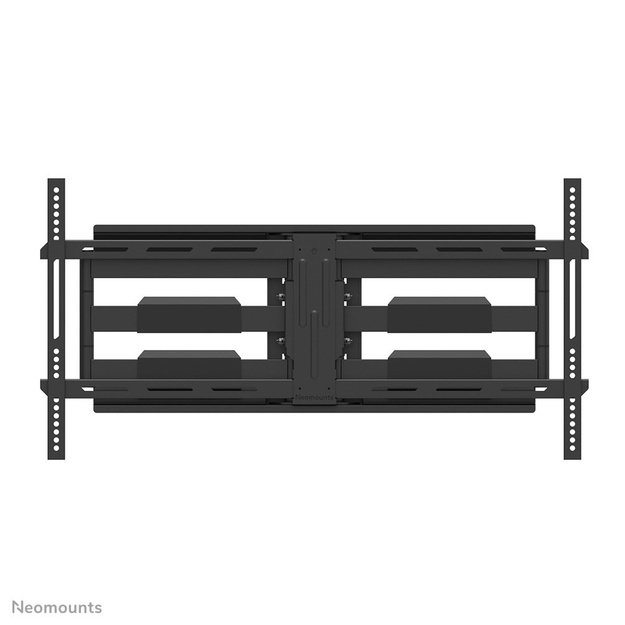

Panel mounting interface: 600 x 400 mm, 200 x 100 mm, 400 x 400 mm, 440 x 400, 200 x 400 mm, 800 x 200, 400 x 200 mm, 600 x 200, 680 x 300, 200 x 200 mm, 400 x 300 mm, 300 x 200 mm, 350 x 350, 300 x 300 mm, 800 x 400 mm, 500 x 400, 200 x 300 mm, 600 x 300, 200 x 150 mm
Maximum screen size: 190.5 cm (75 )
Minimum VESA mount: 200 x 100 mm
Maximum weight capacity: 45 kg
Minimum screen size: 109.2 cm (43 )
Maximum VESA mount: 800 x 400 mm
Mounting type: Wall
Number of displays supported: 1
Maximum weight capacity (per display): 45 kg
